Series 319/389/334/323/335/414 Antenna Mounting Ring
The ACC-0019, Antenna Mounting Ring Accessory is used to directly fasten any series 319/389/334/323/335/414 antenna in this catalog strongly to a chassis where extra strength or support is needed. The Ring adds the capture of 4 mounting screws to the normal NMO Mount, enabling these small antennas to be securely mounted and sealed on UUV, UAV/UAS, shallow underwater and low flying aircraft platforms. The Mounting Ring installs with four #10-32 (M5) 82° flat head screws.
This Antenna Mounting Ring is available in various colors, including Black, White, Olive Drab and Desert Sand.

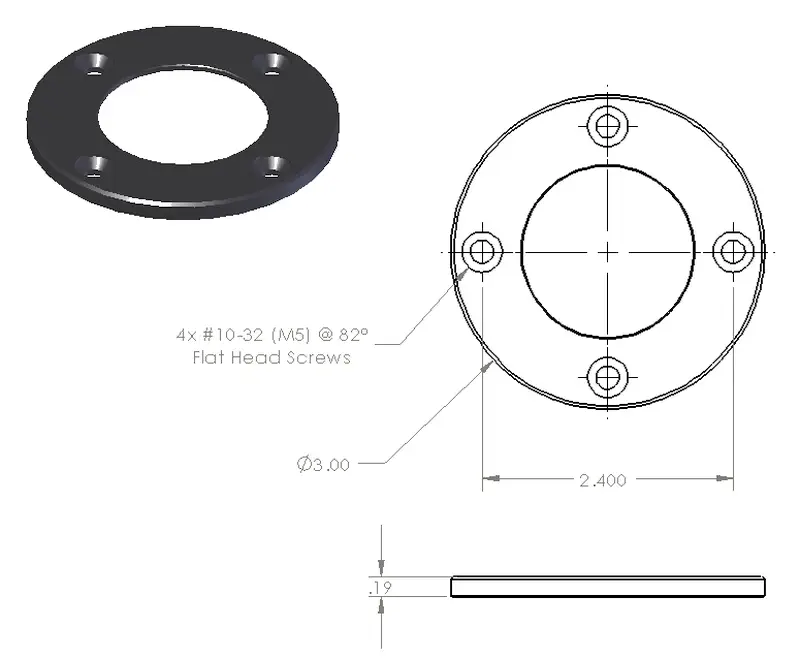

ACC-0019 Technical Specifications:
- Dimensions: 76 mm (3.0") OD x 5 mm (0.2")
- Hole Spacings: 61 mm (2.40")
- Mounting Hardware: 4x #10-32 screws (5 mm), flat head, Stainless Steel
- Weight: 150 g (0.35 lbs)
