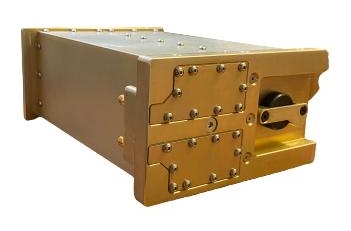

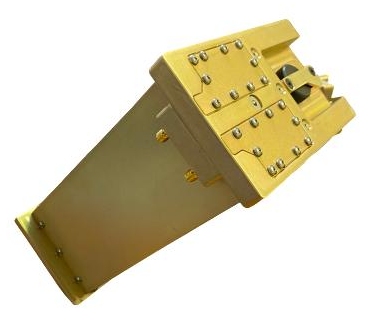

Tuneable VHF Cavity Bandpass Filter, Description
This Tuneable VHF Cavity Bandpass Filter is a sharp, narrowband, inline filter designed to enable communications where strong in-band signals exist, where a high degree of man-made noise prevents reliable communications, or where cohabitation with other transmitters is required. The VFL-0130-672 can be tuned to the intended operating frequency within frequencies spanning 112 MHz to 150 MHz (Aviation and Amateur Radio VHF bands).
Use this filter when operating in challenging or hostile Electromagnetic environments, such as Airports, to relieve Air Traffic Control radio equipment's front end from having to contend with large amounts of integrated power or nearby transmissions, which can lower receiver sensitivity and produce undesirable intermodulation products. Additionally, use it to keep your emissions clean from spurious components affecting nearby communications of others.
VFL-0130-672 Technical Specifications
- Tuning Frequency range: 110-150 MHz (Airband/Amateur Radio), useable 90-155 MHz
- Bandwidth: 2.0 MHz
- Insertion Loss: 1.3 dB (typical)

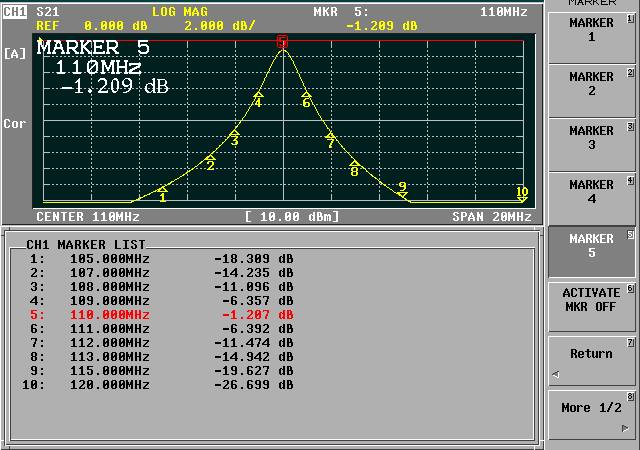

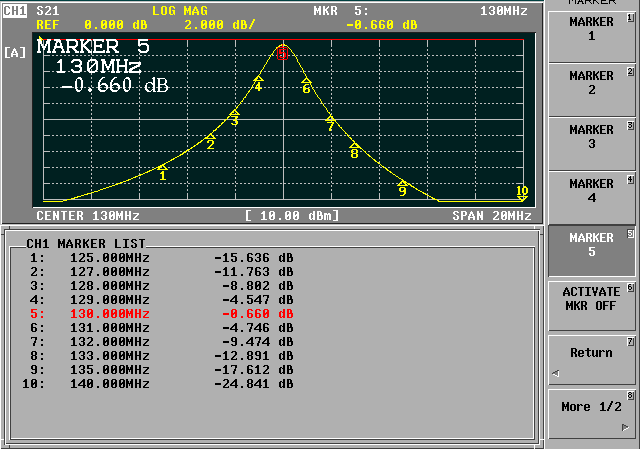

- Rejection: 11 dB (typical) ±3 MHz
- Nominal Impedance: 50 ohm (RF), Short Circuit (DC)

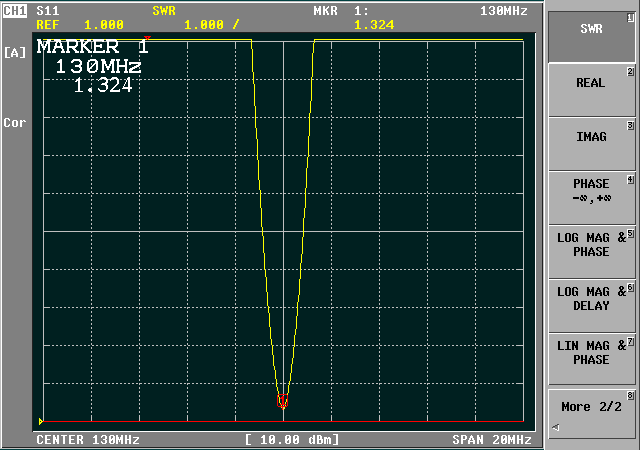

- VSWR: 2.0 (maximum)
- RF Power: 75 Watt CW (maximum)
- RF Connectors: SMA Female
- Dimensions: 20 cm (8.00 in) L x 15 cm (5.75 in) W x 8.5 cm (3.25 in) H
- Finish: Black or Iridite Yellow
- Mounting: Four #8-32 screws
- Operating Temperatures: -40C to +85C
- Weight: 2.5 kg (5 lbs)
