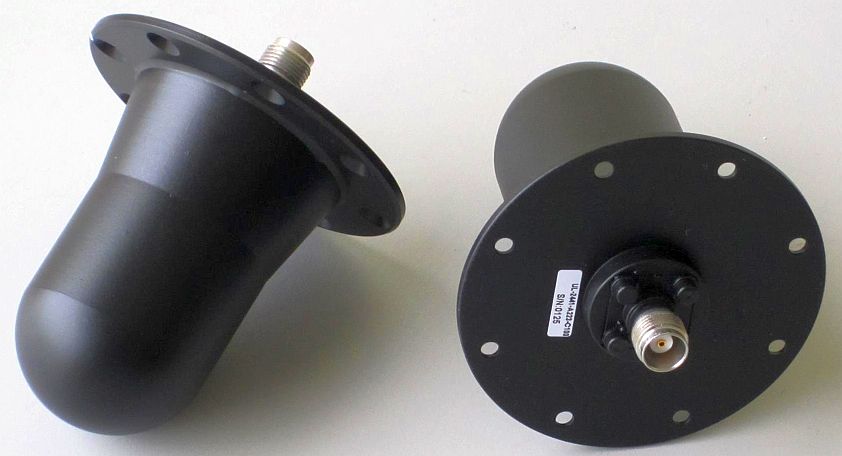

UL-2441-A223, Broadband Omni Antenna Technical Specifications
- Frequency range: 1.2-2.8 GHz
- Coverage: Omni-directional
- Polarization: Linear, Vertical
- Gain: +2 to +4 dBil
- Nominal Impedance: 50 ohm (RF), Open Circuit (DC) with grounded radiating element
- VSWR: 2.0
- Dimensions:
- Radome/Housing 5 cm (2") OD (max) x 7.6 cm (3") Height
- Mounting flange 7.75 cm (3.05") Diameter x 3 mm (0.12") thick
- Mounting: 8 x #6-32, 100° screws
NOTES:
- Requires a ground plane (normally mounts on a metal body)
- This antenna is subject to export controls
- The radome of this antenna has undergone loaded accelerated airborne life tests in a wind tunnel
