UL-235A-498, +11 dBil Broadband, High Gain S-Band Directional Antenna, 2.2-2.5 GHz

+11 dBil Broadband, High Gain S-Band Directional Antenna, 2.2-2.5 GHz, description

The UL-235A-498 is a broadband, +11 dBil High Gain S-Band Directional Antenna, providing continuous communications coverage across the spectrum of 2.2 GHz to 2.5 GHz and beyond.

Its primary use is to enhance point-to-point Wi-Fi network signals in 802.11b and 802.11g modes (2.400-2.485 GHz), or those of licensed and unlicensed WiMax in the Americas (2.3 GHz, 2.5 GHz, 2.6 GHz, and 2.4 GHz). At most urban US locations, it may be used to enhance reception of Satellite Radio (SDARS) emissions between 2.320-2.345 GHz.

The broadband nature of this Directional Antenna allows concurrent operation on the above services, in addition to doubling up as a Directional Antenna in S-Band Telemetry and Video applications. For example, it can be used as a portable, high gain (+11 dBil), search S-Band Antenna, to enhance the downlink video feeds of remote control (RC) planes and UAVs (drones), boats, cars and robots; or to connect wireless security equipment, such as cameras. Other applications include SCADA (Supervisory Control And Data Acquisition), Direction Finding and Surveillance. It can also be used to close short to medium range wireless links within the unlicensed 2.4 GHz spectrum, or to extend Wi-Fi+WiMax network coverage.

This antenna is compatible with AN/PRC-343 Personal Role Radio (PRR) and Integrated Intra Squad Radio (IISR), also known as H4855/H4855U radio (select cable with SMA Male & N Male connectors)

UL-235A-498 Technical Specifications

• Frequency range: 2200-2500 MHz (useable beyond 2.0-3.0 GHz)
• Coverage: Directional
• Patterns:
  • E-plane (plane of elements marked by the engraved line on the mounting flange)

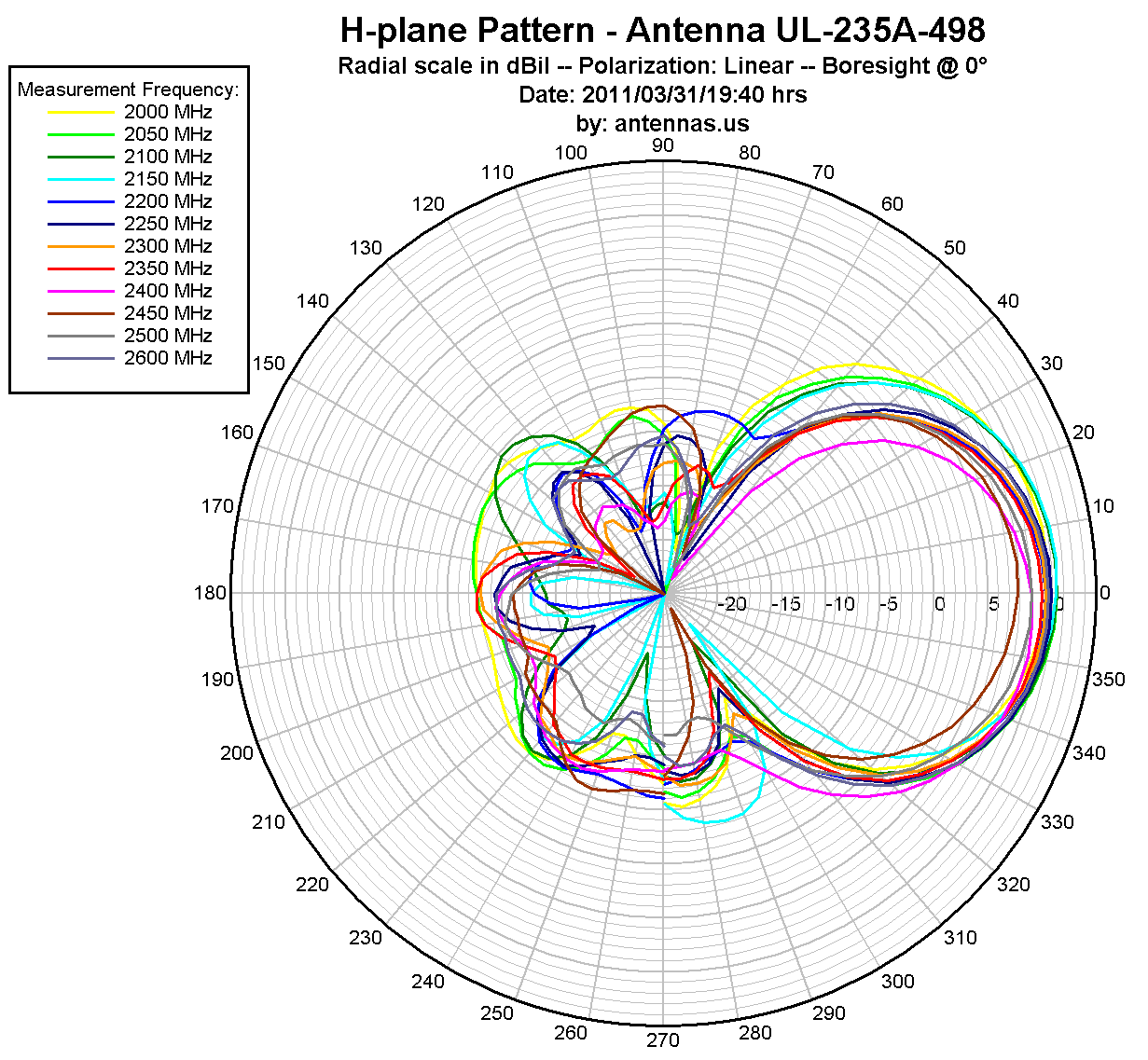

  • H-plane (plane perpendicular to elements)
• Polarization: Linear, Horizontal or Vertical, depending on installed orientation
• Peak Gain: +11 dBil
• Nominal Impedance: 50 ohm (RF), Short Circuit at DC
• Input Power: 10 Watts CW

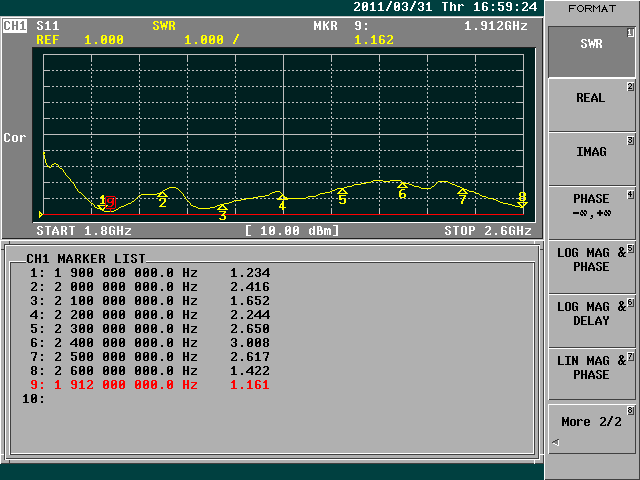

• VSWR: under 3.0 GRAPH

• Connector: Type N, Female
• Dimensions: 10 cm (4") average OD x 16 cm (6.3") L [Bottom Flange OD is 13 cm (5")]
• Mounting: 4 screws
• Operating Temperatures: -40°C to +85°C
• Weight: 400 g / 0.8 lbs
• Shipping Weight: 500 g / 1 lbs

Recommended Cable Assemblies

• LMR240 - use for cables longer than 3 meters (10 ft)
• LMR195 - use for cables shorter than 3 meters (10 ft)
