The UL-9001-333 RFID/Low Power application antenna and RF coupler was developed in response to catalog visitor requests. This antenna was designed for use in close proximity of or near RFID tags, particularly when the tag is placed on a large body, capable of detuning commonly used RFID reader antennas.
Exposed metal surfaces within the antenna are grounded to the RF connector's shield, as a precaution, in the unexpected event there are combustible gases present. Only the RF connector's center conductor, and its associated 2.5 cm (1") track of transmission line are not grounded. Such node is isolated to 50 Volts DC at ground level (altitude = 0 m), and within the specified temperature range.
Normal uses of the UL-9001-333 are as:
- RFID reader antenna, operating within US 900 MHz ISM band (902-928 MHz), or within EU unlicensed band 868 MHz
- Cellular Phone test fixture RF coupler, operates best at cellular 800 and 900 MHz bands
- Embedded or exterior antenna for 800/900 MHz portable, and small devices
- Inconspicuous receiving antenna from 700 MHz to 1 GHz
- Low Power 800/900 MHz home projects
- Frequency range: 850-950 MHz
- Coverage: Omni-directional, moderate azimuthal ripple (3 dB)
- Polarization: Linear
- Gain: 0 dBil
- Nominal Impedance: 50 ohm (RF), Open Circuit (DC), 30VDC isolation, radiating element grounded
- Input Power: 1 Watt CW

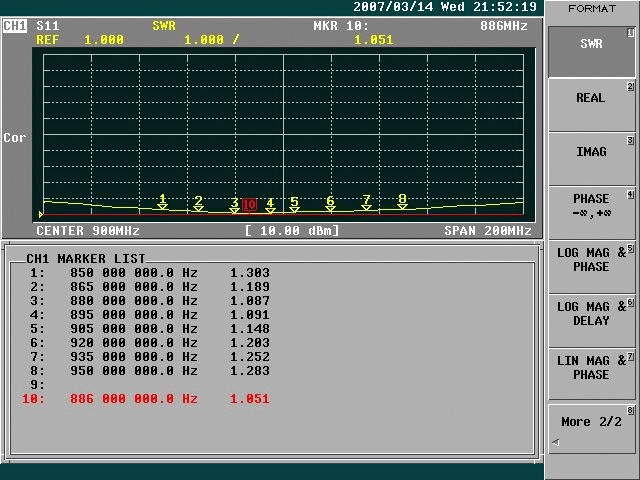

- VSWR: 2.0 GRAPH
- Connector: SMA, Female
- Dimensions: 5 cm (2") x 10 cm (4"), excluding connector (connector protrudes 1.4 cm or 0.55")
- Mounting:
- SMA connector (nut included), 6.5 mm (0.25") hole
- Two M2.5-2.8 (#4) screws, 76.2 mm (3.00") center to center
- Operating Temperatures: -40C to +85C
- Weight: 10 g / 0.4 oz
- Shipping Weight: 20 g / 1 oz
Click here to see DATASHEET
NOTES:
- Antenna designed for low power use. It is forgiving when used in "proximity" type applications, where target loading may be substantial.
- Not intended for "Intrinsically safe" applications
- Specifications and prices are subject to change without notice
